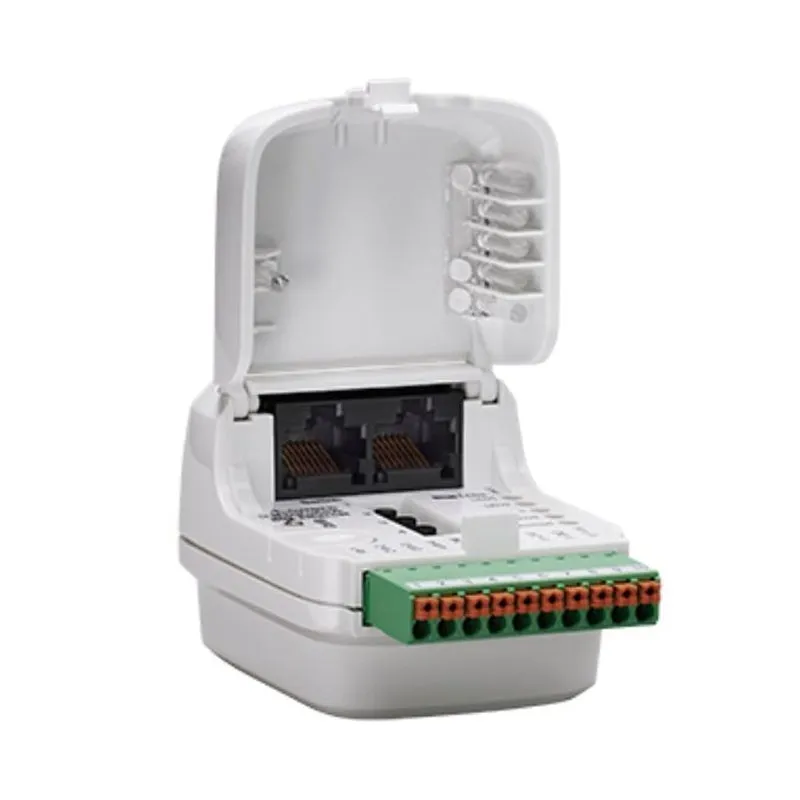

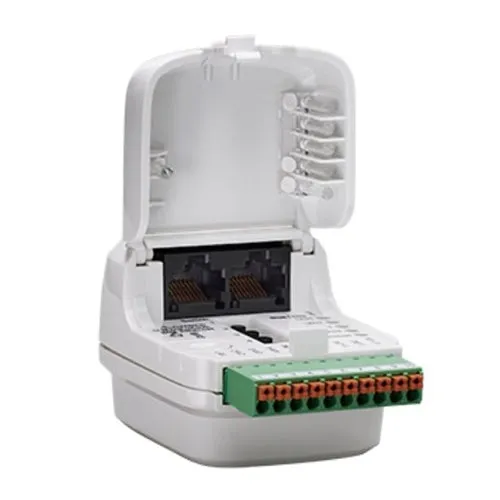

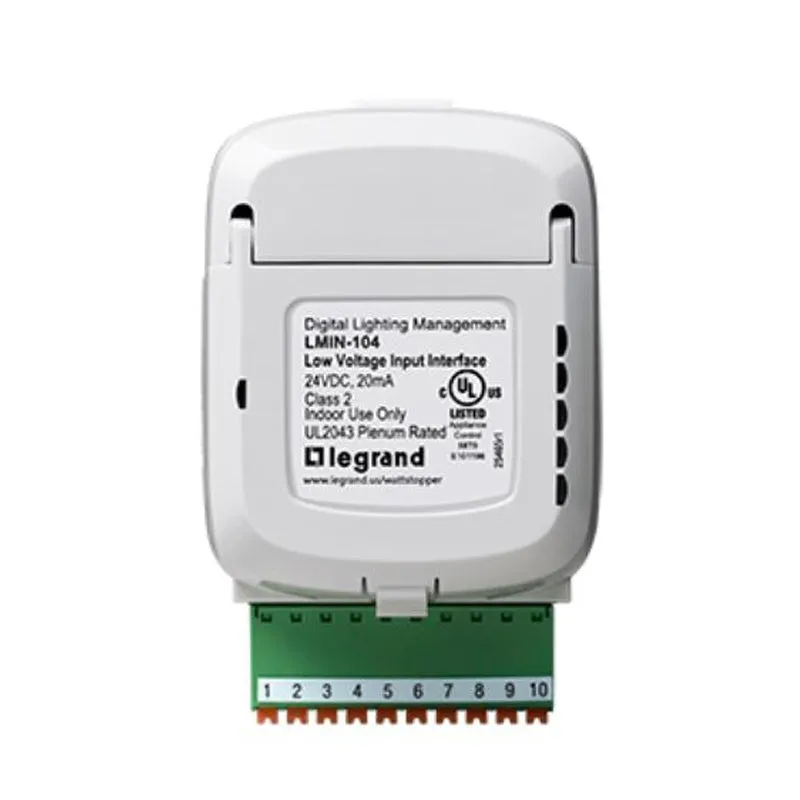

The LMIN-104 Input/Output Interface allows seamless integration with third party devices to provide additional functionality in a Digital Lighting Management (DLM) system.

Features:

• Special Features: 2 RJ45 ports, Push n??Learn functionality
• Voltage: 24VDC
• Maximum current consumption: 20mA
• Input interface for integration of third party devices
• Component of Digital Lighting Management integrated control systems
• Hinged dust cover protecting two RJ45 ports
• Four isolated 2 wire contact closure inputs for up to two control devices
• Fits into standard single gang wallbox; optional DIN rail mounting
• Status LED for each input
• Removable terminal block for connections third party inputs
• Input ratings:
• Input max. sink/source current: 1- 5 mA
• Logic input signal voltage High: >18 VDC
• Logic input signal voltage Low: < 2 VDC

Model:

LMIN-104
