12A Non-Isolated Step-Down 24VDC-12VDC Converter

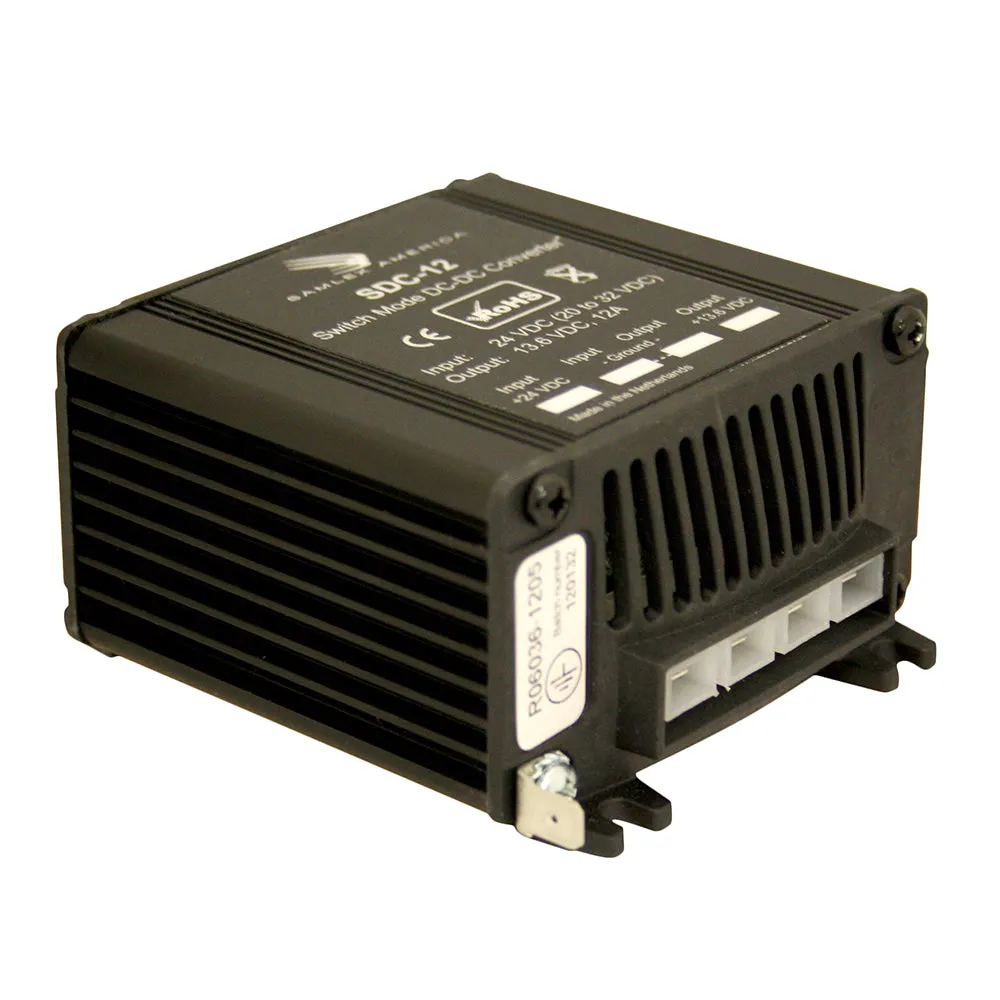

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 12 Amps. The SDC-12 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include short-circuit, reverse polarity and over-voltage protection.

Features:

• Advanced switchmode design


• Mount in almost any location


• Compact and light weight


• Reverse polarity protection


• High efficiency


• Cycle by cycle current limiting circuit


• Overvoltage protection


• Short circuit protection

Specifications:

• Input: 20-32 VDC


• Output: 13.8 VDC


• Amps: 12 Amps


• Weight: 1 (lbs)


• Weight: 0.45 (kg)


• Dimensions: 4 x 3.5 x 2 (in)


• Dimensions: 10.2 x 8.9 x 5.1 (cm)


• Warranty: 2 Year Limited

Applications:

• Earth moving equipment


• Heavy trucks


• Buses


• Marine vehicles


• CB radios


• 12 Volt lighting systems


• AM/FM sound systems
