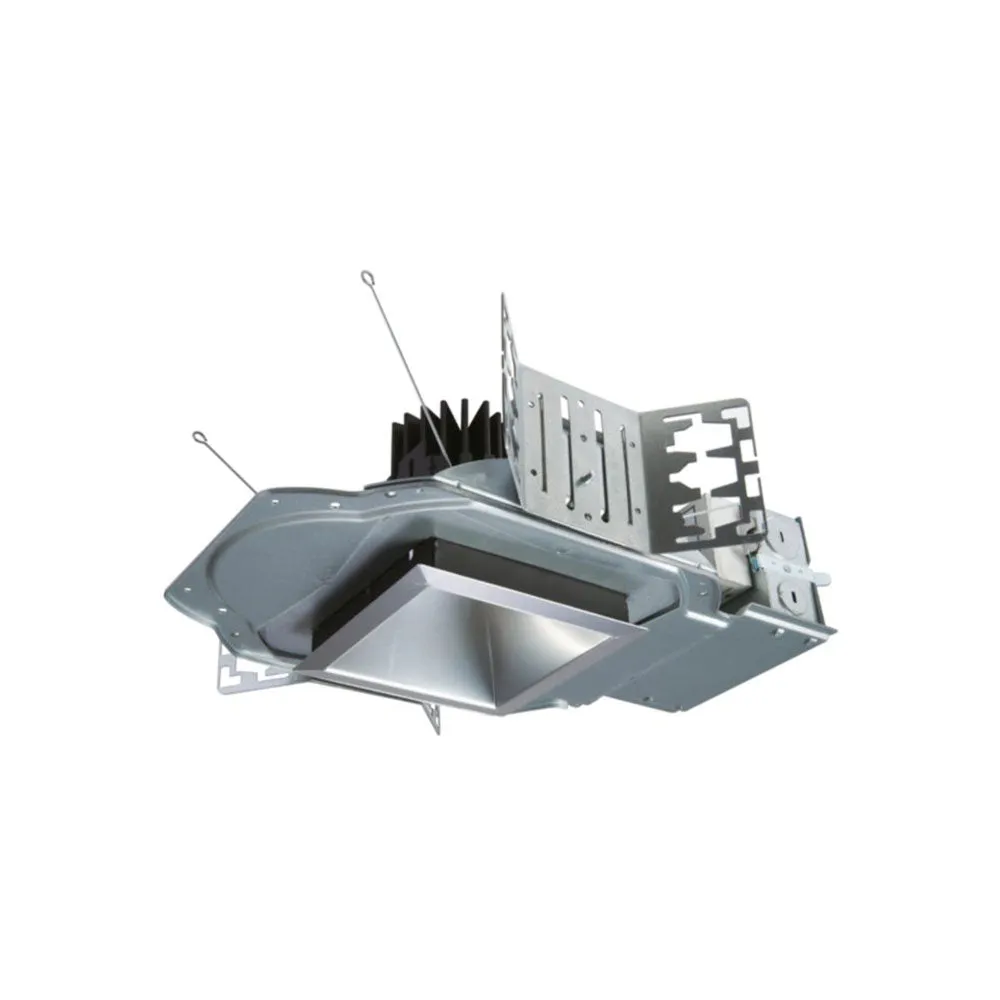

Portfolio Lighting LDSQ4C 4 Inch Recessed Downlight

The 4" LED square new construction recessed downlight, also available as a lensed wall wash luminaire, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. Adjustable collar adjusts for up to 2" thick ceilings and rotates /- 7.5°. Available with die-cast or spun aluminum reflectors with light output of up to 7,500 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.

Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.

• Square new construction downlight or lensed wall wash, ENERGY STAR® qualified
• Collar adjusts for up to 2" thick ceilings and rotates /- 7.5°
• Excellent light control and low aperture brightness
• Lumens: 1,000-7,500, 0-10V dimming down to 1%
• CRI: 90, 97 or 98, D2W™ option from 3000K to 1850K
• 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
• W2N Tunable White 2700K-6500K or 2000K-5000K
• Square anodized aluminum, die-cast, or non-conductive reflectors
• WaveLinx and DLVP connected lighting systems compatibility
• Plaster lathing ring accessory offered for flush reflector transition
