Name: GY-906 MLX90614ESF DCI Infrared Temperature Sensor Module Range 1meter
SKU: 2226963

Product Details ＋

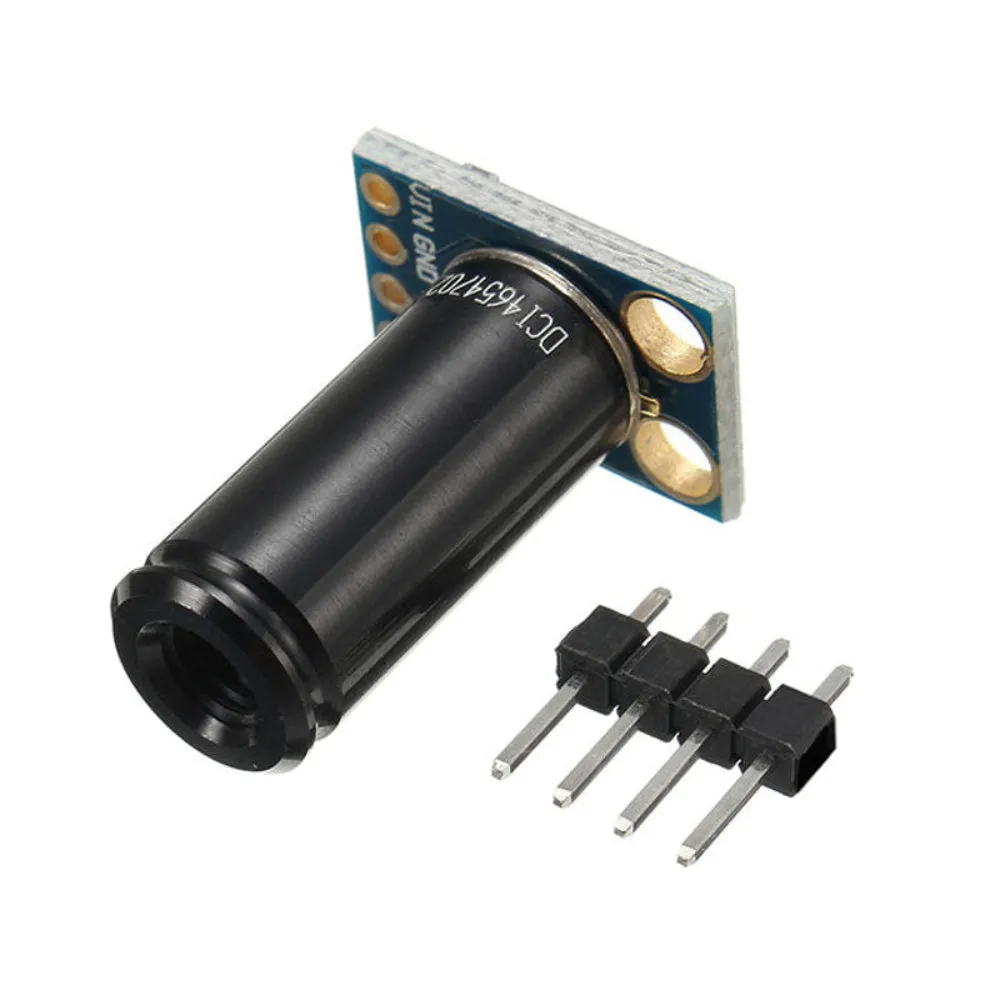

GY-906 MLX90614ESF DCI Infrared Temperature Sensor Module Range 1meter

This is an infrared thermometer designed for non-contact temperature sensing. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614’s high accuracy and resolution. It has a huge number of applications including body temperature measurement and movement detection. The sensor has a field of view of 5 degrees and returns the average temperature value of all objects within this field of view.

GY-906 MLX90614ESF-DCI non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through its I2C interface.

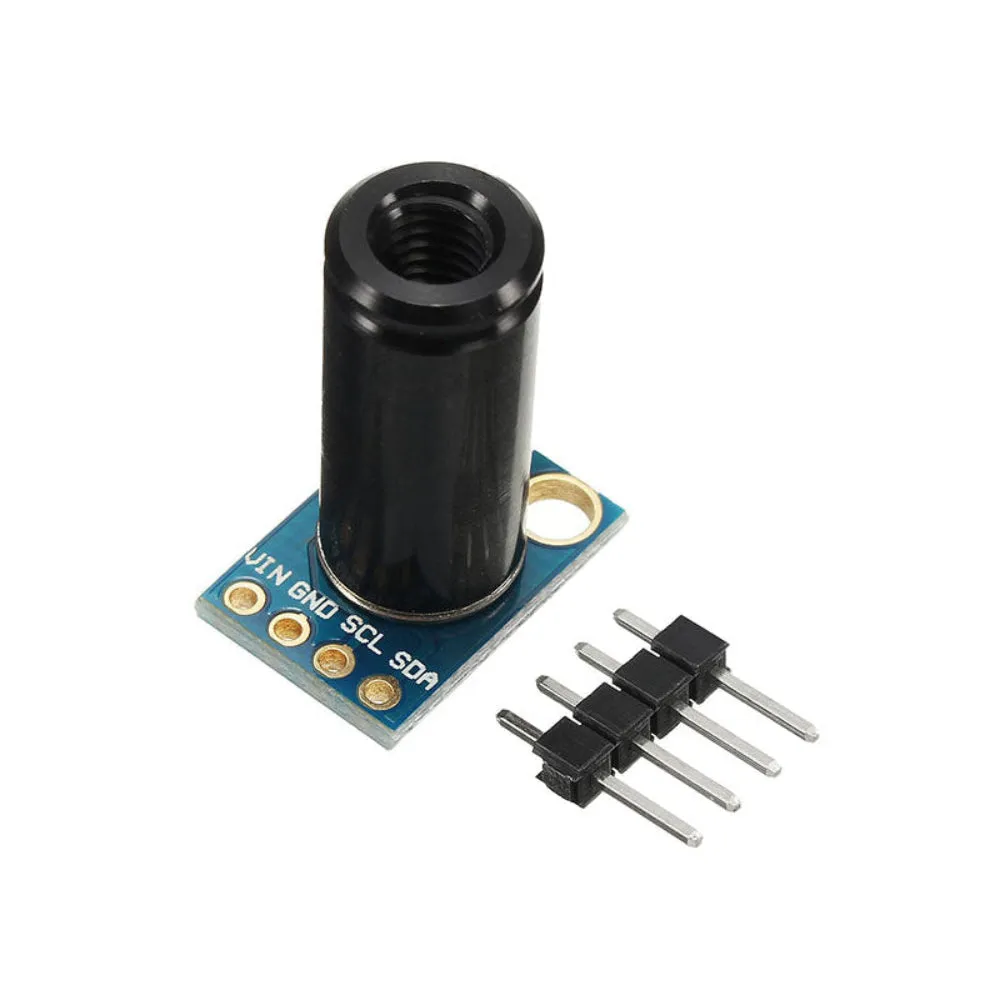

This sensor comes with a breakout board with all of the components needed for operation and two types of pins.

Technical Details

Item Type: Sensor
Model Type: Sensor Module
Model No.: MLX90614ESF
Sensing range: 25 CM - 60 CM
Field of View: 5 degrees
Sensing Temperature: -40 to 85°C

Features

Small size, low cost
Mounted on a breakout board with two types of pins
10k Pull-up resistors for the I2C interface with optional solder jumpers
Easy to integrate
Factory calibrated in a wide temperature range
Single and dual-zone versions
SMBus compatible digital interface
Customizable PWM output for continuous reading
High accuracy of /- 0.2°C over the wide temperature range
Sleep mode for reduced power consumption

Applications :

High precision non-contact temperature measurements
Thermal Comfort sensor for Mobile Air Conditioning control system
Temperature sensing element for residential, commercial, and industrial building air conditioning
Windshield defogging
Automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Livestock monitoring
Movement detection
Thermal relay/alert
Body temperature measurement
